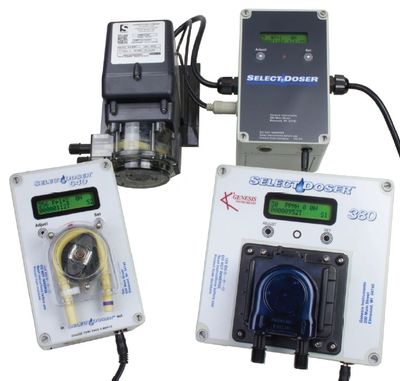

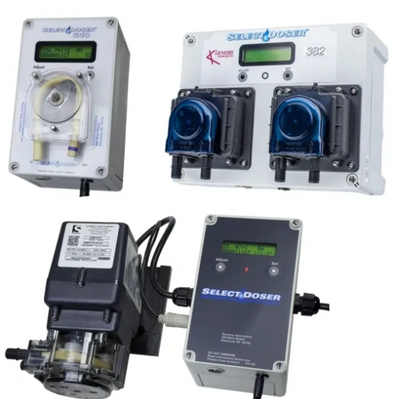

SELECT DOSER™

The Select Doser™ product line offers proportional additive pumps ideal for agricultural and industrial operations to accurately dispense vaccines, medications, vitamins, sanitizers and other solutions into low-or high-pressure water systems.


The Select Doser™ has a unique advantage over other water medicators on the market by offering custom programming to dose at any ratio from 1:10 down to 1:100,000 or deliver product in parts per million (ppm). This custom ratio selection allows the operator to pump from the stock container directly into the waterline without pre-mixing.

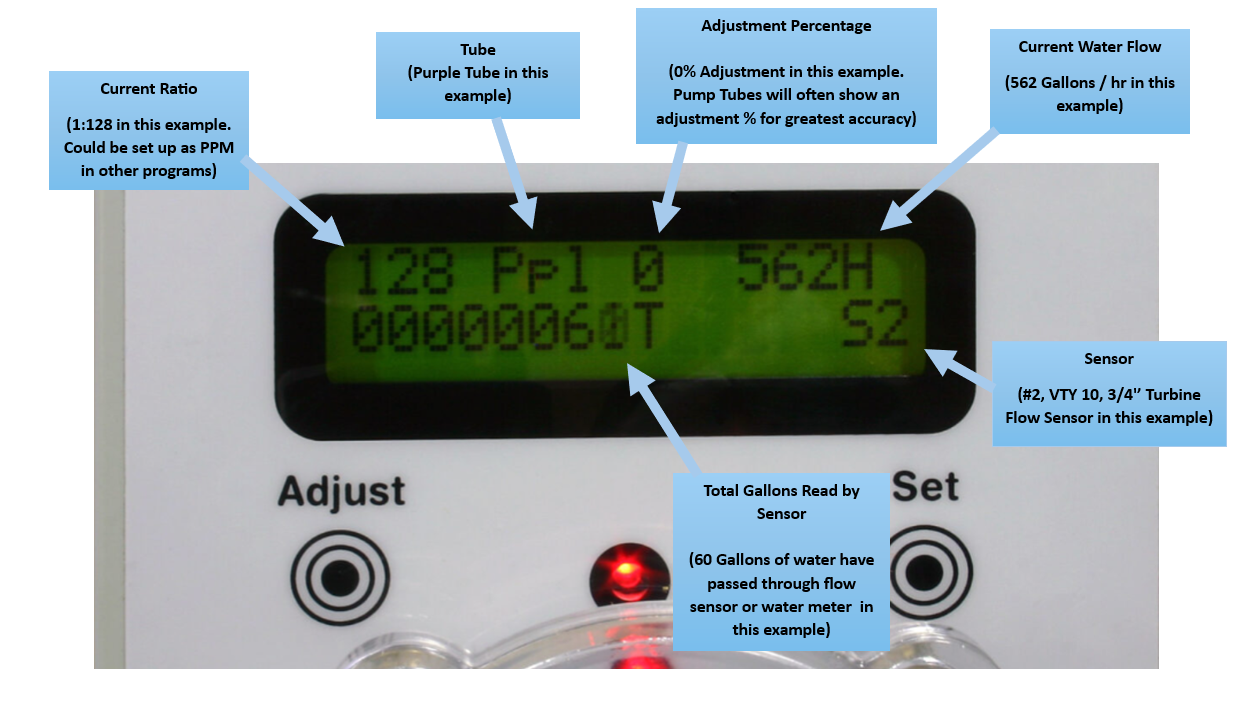

The on-screen menu allows the user to easily change ratios and monitor current water flow and total water consumption. The ability to monitor water consumption can help identify when animals aren’t drinking – informing the user of an approaching health problem in livestock operations.


Unlike many pumps on the market that corrode overtime, the Select Doser™ is corrosion resistant. The peristaltic pump design prevents aggressive products from contacting the working parts of the pump. This action also prevents dangerous cross contamination and product backflow. Through peristaltic action, the Select Doser™ yields precise water-to-product ratios with over 95% ACCURACY. The accuracy of the unit prevents overdosing and underdosing – saving the user money and resulting in fewer health problems in livestock operations.


The Select Doser requires low maintenance with no seals, no valves and no springs to replace - Simply change the pump tube! All pump tubes are tested for accuracy and durability against most dosing solutions, including acidifiers and chlorine.


Genesis Instruments offers a variety of mechanical and magnetic Water Flow Sensors that are fitted into the waterline. Various fittings are available such as PVC, In-Line Mold and Saddle. These flow sensors measure the rate of the water flow and send pulses to the Select Doser™ resulting in accurate and timely dosing. All flow sensors offered by Genesis Instruments are easy to install and engineered for accuracy and precision. Select Doser™ can also be programmed to hook into an existing water meter.

SELECT DOSER™ 640

SELECT DOSER™ 640

SELECT DOSER™ 640

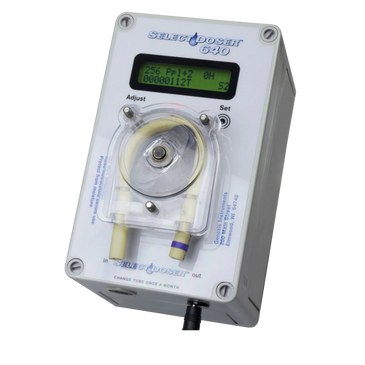

The Select Doser™ 640 can inject into water lines with up to 30 PSI and can pump up to 9 gallons of product per hour making it ideal for administering livestock medications and vaccines into drinking water. Through peristaltic action, the Select Doser™ 640 yields precise water-to-product ratios with over 95% ACCURACY.


SELECT DOSER™ 640 INFORMATION

SELECT DOSER™ 380

SELECT DOSER™ 640

SELECT DOSER™ 640

The Select Doser™ 380 can inject into water lines with pressure of up to 80 PSI and is ideal for dosing livestock medications requiring low dosing or chemical treatment of water. The

on-screen menu allows the user to easily change ratios and monitor current water flow and total water consumption.


SELECT DOSER™ 380 INFORMATION

SELECT DOSER™ MAX

SELECT DOSER™ 640

SELECT DOSER™ MAX

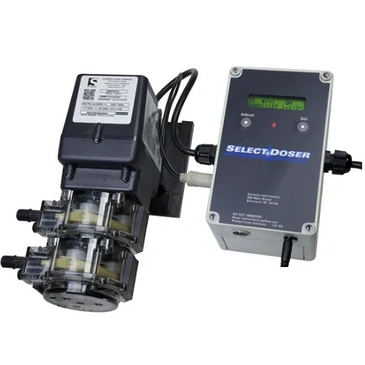

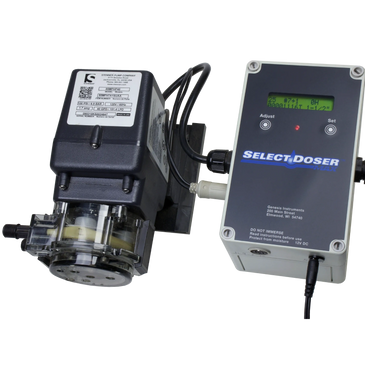

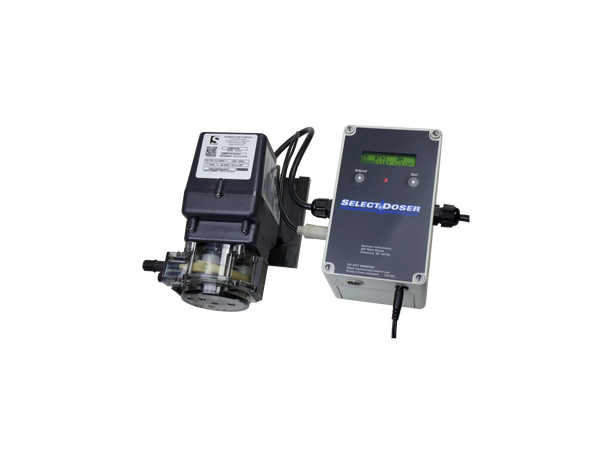

The Select Doser™ Max is designed with a durable Stenner Classic Series motor and can inject into water lines with pressure of up to 100 PSI. The Select Doser™ Max is ideal for dosing livestock medications requiring low dosing or chemical treatment of water. The peristaltic design keeps aggressive products inside the pump tube.

SELECT DOSER™ MAX INFORMATION

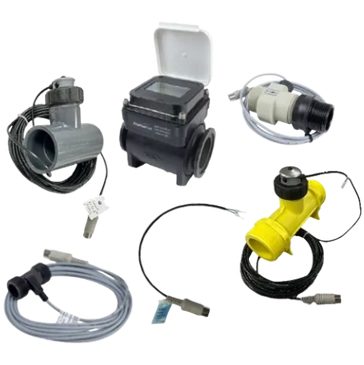

FLOW SENSORS

SELECT DOSER™ 640

SELECT DOSER™ MAX

Flow sensors are necessary to measure the rate of the water flow and send pulses to the Select Doser™ resulting in accurate and timely dosing. Numerous mechanical and magnetic flow sensors with various fittings are available. Select Doser™ can also be programmed to hook into an existing water meter.

FLOW SENSOR INFORMATION

CHOOSING THE CORRECT MODEL FOR YOUR OPERATION

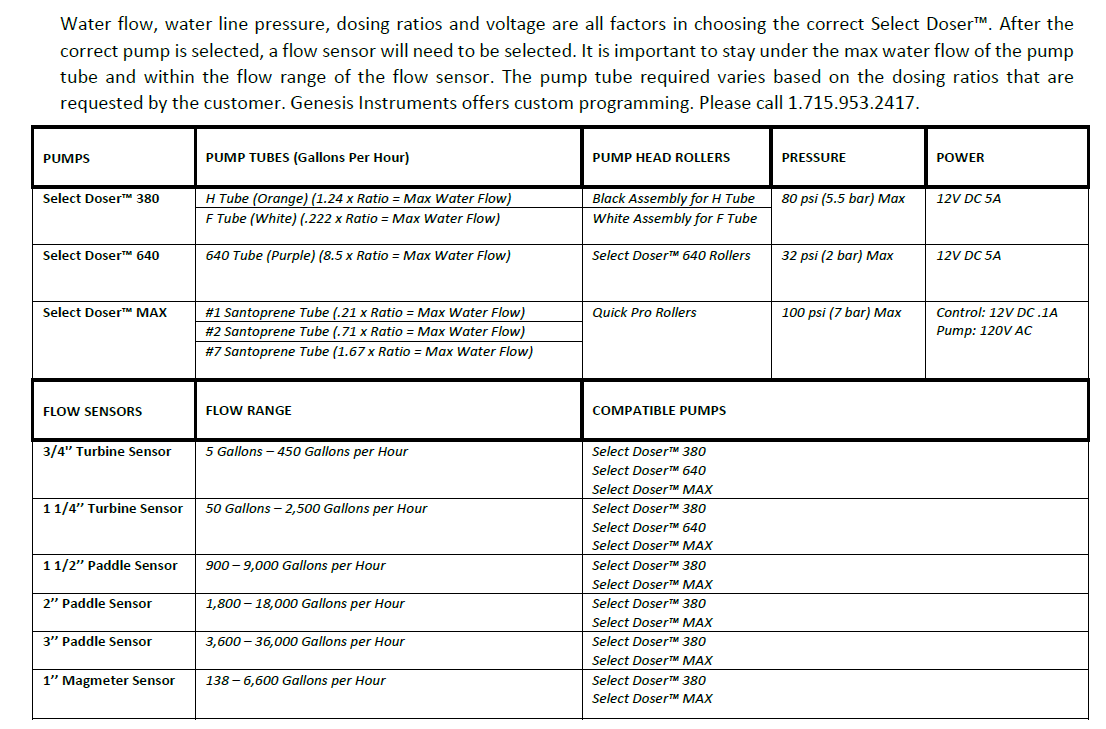

Water flow, line pressure, dosing ratios and voltage are all factors in choosing the correct Select Doser™ model. It is important to stay under the maximum water flow of the pump tube and within the flow range of the flow sensor. The pump tube required varies based on the desired dosing ratios. Please review the information below.

Select Doser™ Set Up Questionnaire - Fillable (pdf)

Download

Technical Information (png)

Download

SELECT DOSER™ PARTS LIST

Download Select Doser™ Parts List

SELECT DOSER™ FLYER

Download Select Doser™ Flyer

SPINSTIR™

SPINSTIR™

The SpinStir™ supplies sufficient agitation to keep nutritional, medicinal, vaccines and horticultural powder particles in suspension through the dosing period. All active ingredients are dosed accurately with no product residue remaining at the end of the dosing period. The 12-Volt DC Power Supply with adjustable speed control allows the user to adjust rotation speed of the stirring magnet. Recommended for use with Select Doser™.


SpinStir™ Key Features

  • Easy to use.
  • Highly Efficient.
  • Eliminates waste and saves the user money by dissolving powders completely.
  • Active ingredients are dosed more accurately by keeping particles in suspension.


Large SpinStir™ (5 Gallon to 55 Gallon Range)

  • Drive Box
  • 12VDC Power Supply
  • 6’’ Stirring Magnet



Select SpinStir™ (1 Gallon to 5 Gallon Range)

  • Drive Box
  • 12VDC Power Supply
  • 5 Gallon Container with Tube Clip
  • 2 ½’’ Stirring Magnet



CONTACT SELECT DOSER™

Select Doser™ USA, Canada, Mexico: selectdoser@genesisinstruments.com sales@genesisinstruments.com (715) 953-2417 Select Doser™ Europe, Australia, Asia, Africa, South America: https://dosingsolutions.com/ info@dosingsolutions.com +44 (0) 1799 551199
